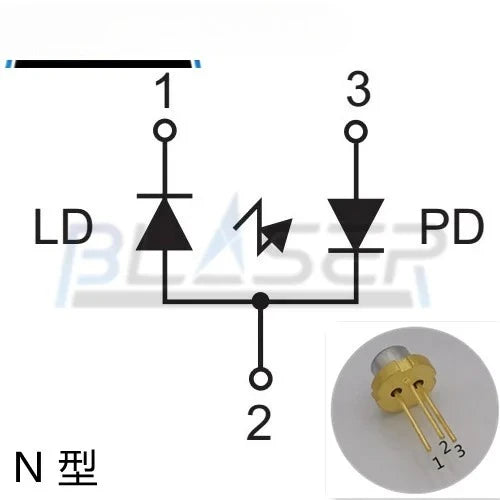

10pcs 670nm5mw Laser Diode N-type 5.6mm Laser Diode Semiconductor Red SLD1121
10pcs 670nm5mw Laser Diode N-type 5.6mm Laser Diode Semiconductor Red SLD1121
Friends, welcome, if you have any questions about the product, or if you want to order in large quantities, you can contact me and I will give you the best price email:
【Product name and model】 Laser Diodes HLD670005N4T
Specifications:
Wavelength: 670nm
Light Output: 5mW CW mW

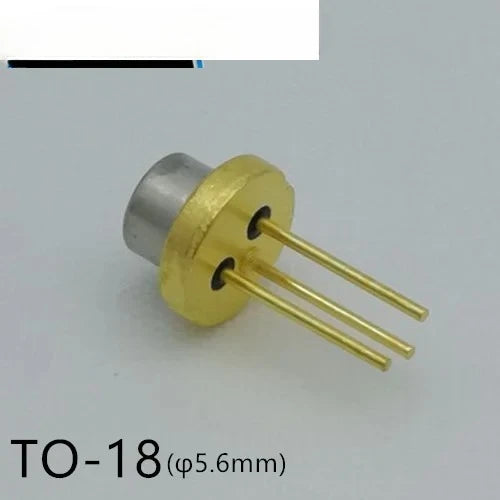

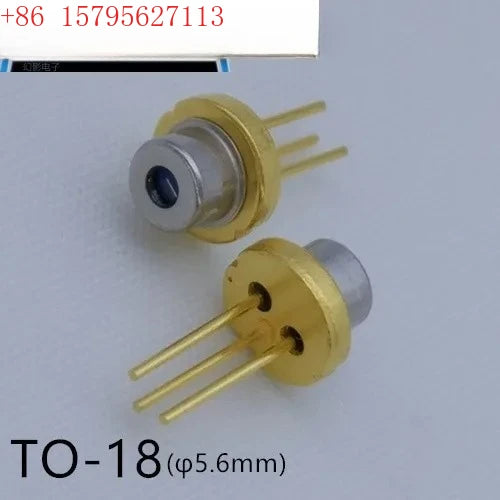

Package Type: TO-18(Φ5.6mm) TO56
Absolute Maximum Ratings(Tc=25℃)
|
Parameter |
Symbols |
Ratings |
Units |
|
Optical Output |
Po |
5 |
mW |
|
Reverse Voltage |
Vr |
2 |
V |
|
Operating Temperature |
Top |
- 10 ～ 50 |
℃ |
|
储存温度(储存温度) |
Tstg |
- 20 ～ 85 |
℃ |

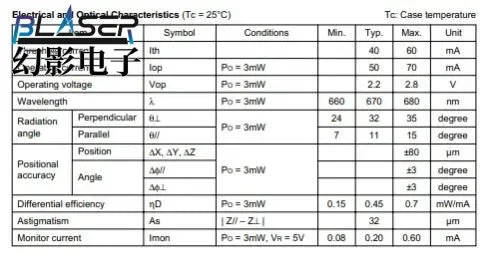

Electrical and Optical Characteristics(Tc=25℃)
|
Parameter |
Symbols |
Typ. |
Unit. |
|
Threshold Current |
Ith |
20 |
mA |
|
Operating Current |
Iop |
35 |
mA |
|
Operating Voltage |
Vop |
2.1 |
Volt |
|
Slope Efficiency |
η |
0.6 |
mW/mA |
|
Monitor Current |
Im |
0.5 |
mA |
|
Beam Divergence (horizontal direction) |
θ// |
8 |
deg. |
|
(FWHM) (vertical) |
θ⊥ |
30 |
deg. |
|
中心波长(中心波长) |
λ |
670 |
(±10)nm |
and θ⊥ are defined as the angle within which the intensity is 50% of the peak value.

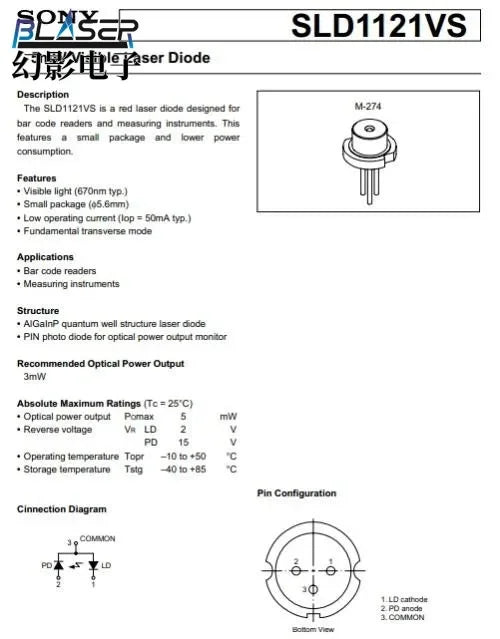

SLD1121 parameter
