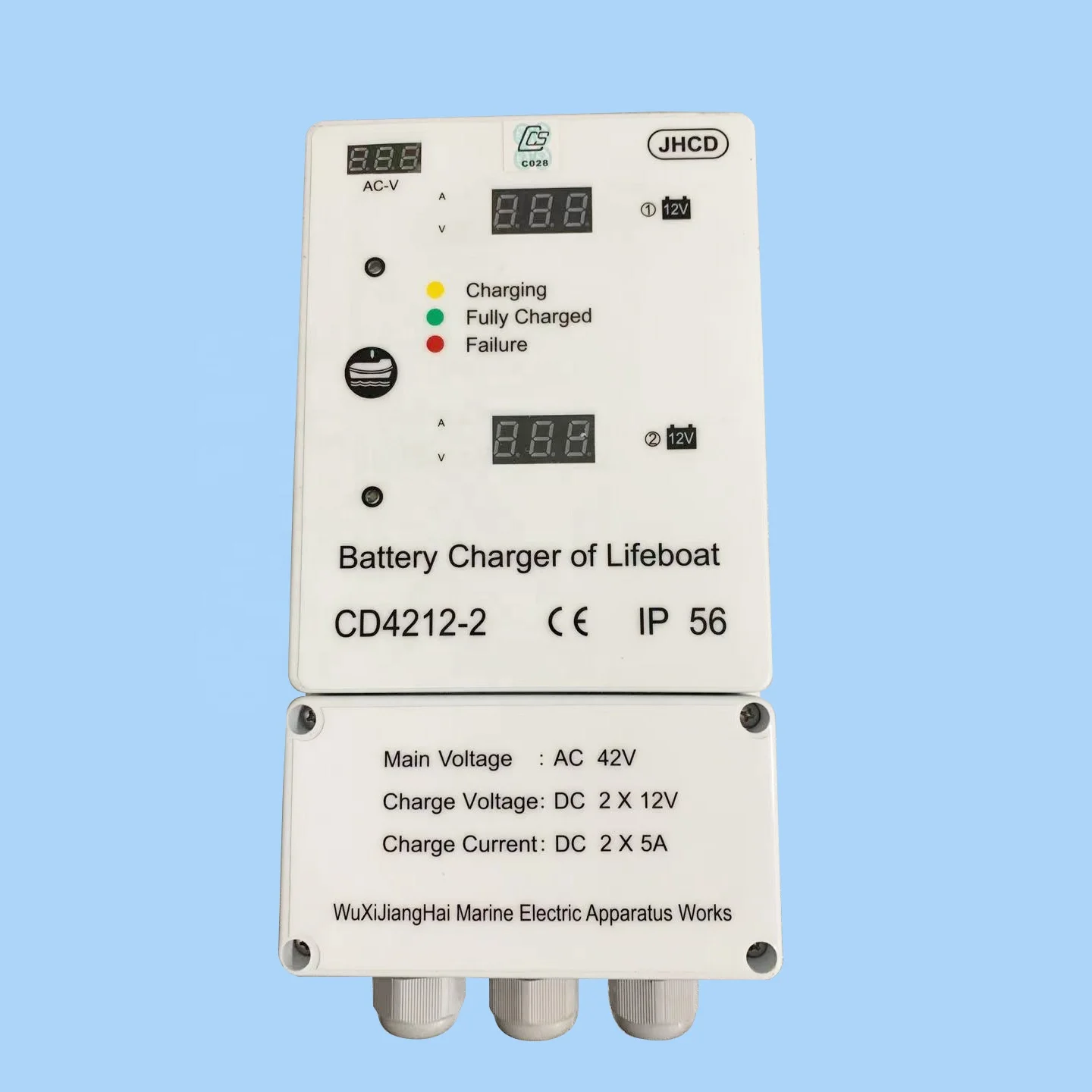

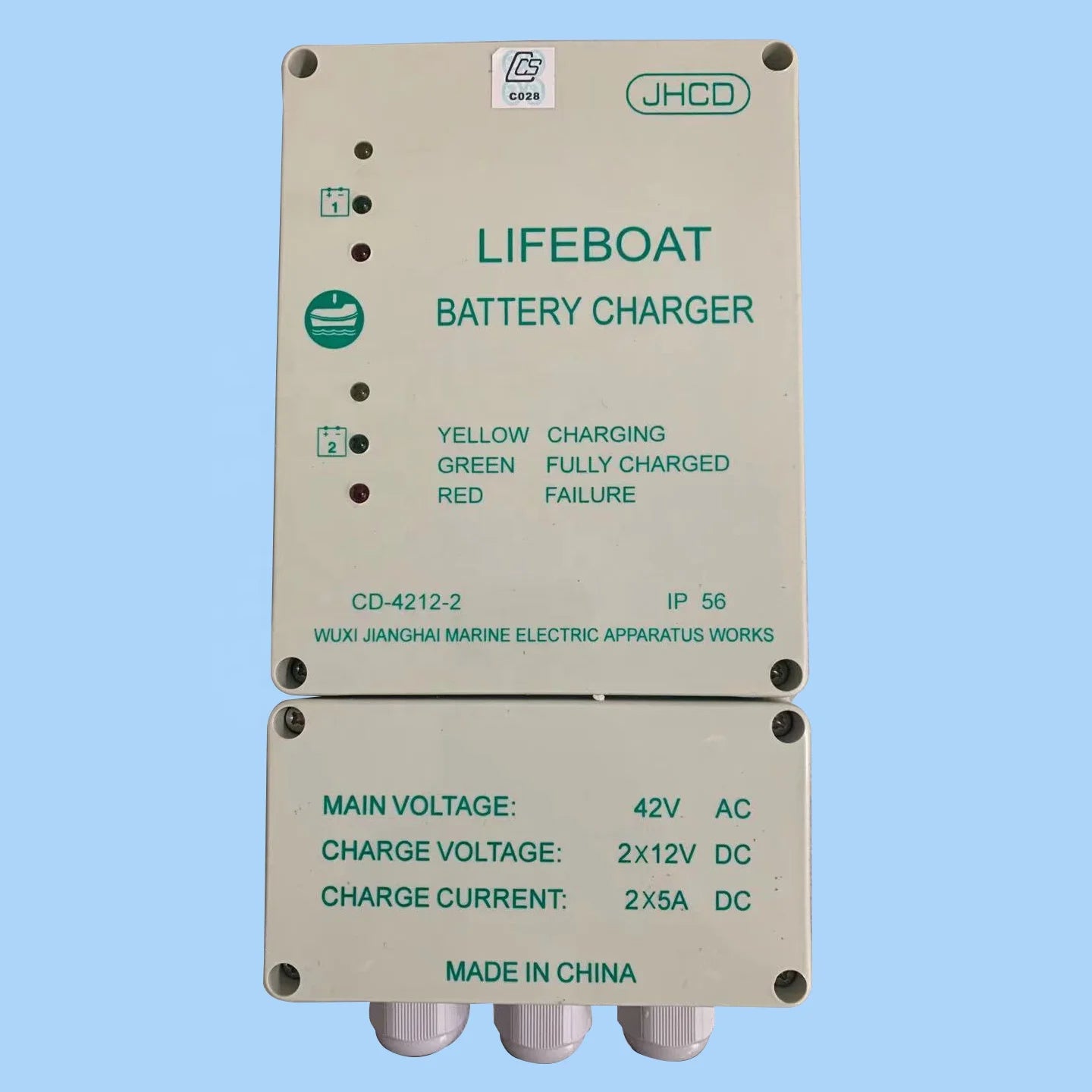

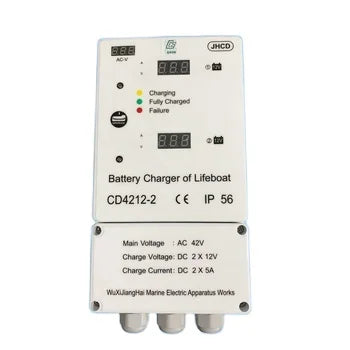

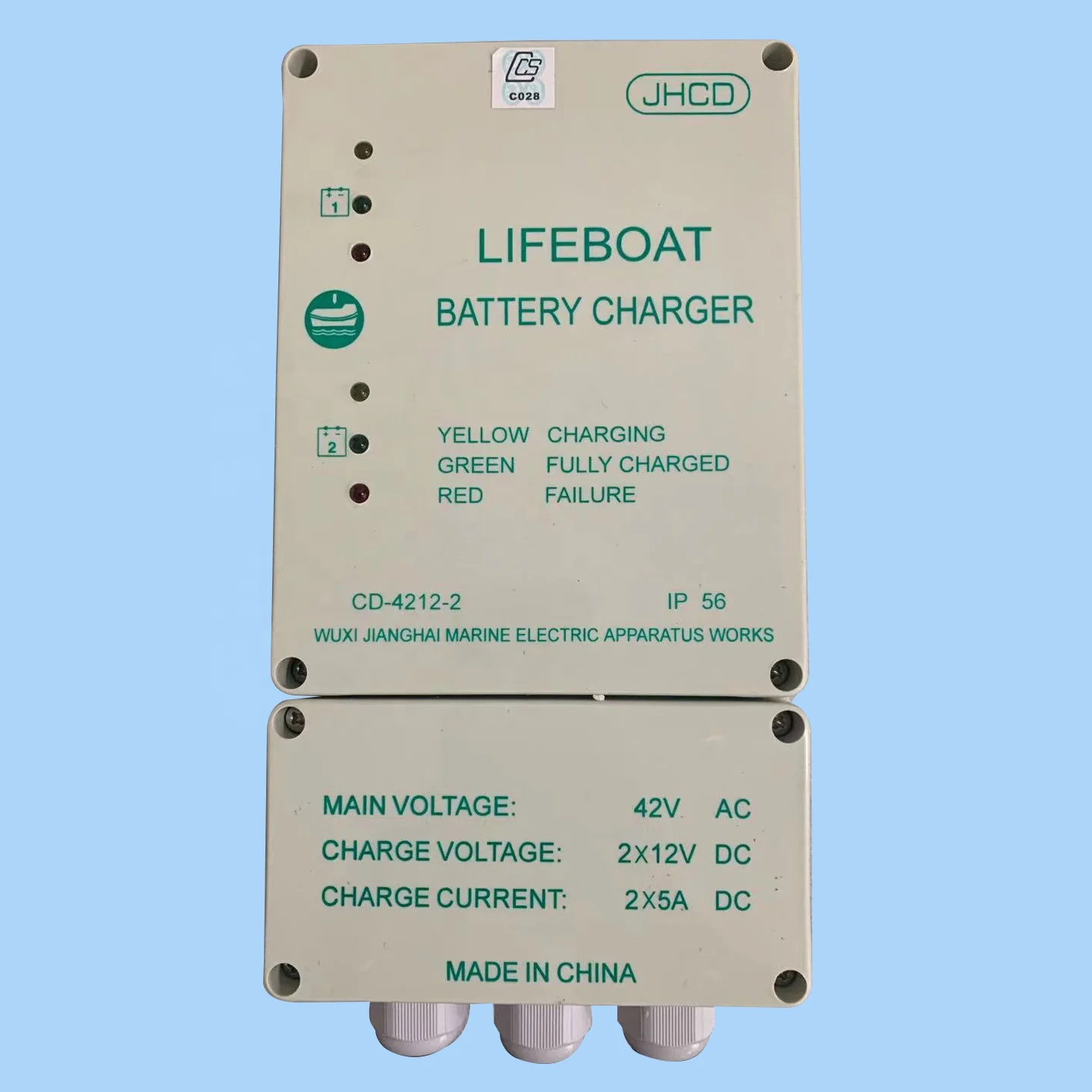

CD-4212-2 Lifeboat Battery Charger / Digital Battery Charger For Boat Or Ship

• Yellow Lamp:

Charging, CD4212-2 will charge automatically if the voltage of the battery is lower than 13.3V.

• Green Lamp:

Fully Charged, CD4212-2 will stop charge automatically if the voltage of the battery is charged to 14.4V.

• Red Lamp:

Failure, CD4212-2 red lamp will flash there is open circuit, reverse polarity, short circuit.

• Main Voltage:

42V AC

• Charge Voltage:

2x12V DC

• Charge Current:

2x5A DC , 2x3A DC

• Protection:

IP56

• Trouble Shooting:

CD-4212-2 yellow lamp flashing, the battery is aging, change the battery.

• Trouble Shooting:

CD-4212-2 red lamp flashing, the output cable is connected reversibly to the battery.

• Warning:

CD4212-2 lifeboat battery charger can only be used to make compensating charge for the battery.

• Important Information:

Always disconnect input VAC (mains) before connecting or disconnecting batteries.

• Working Temperature:

-25℃ ~ 55℃

• HS Code:

8504409999

• Dimension:

243 x 134 x 80 mm

• Weight:

5Kg
