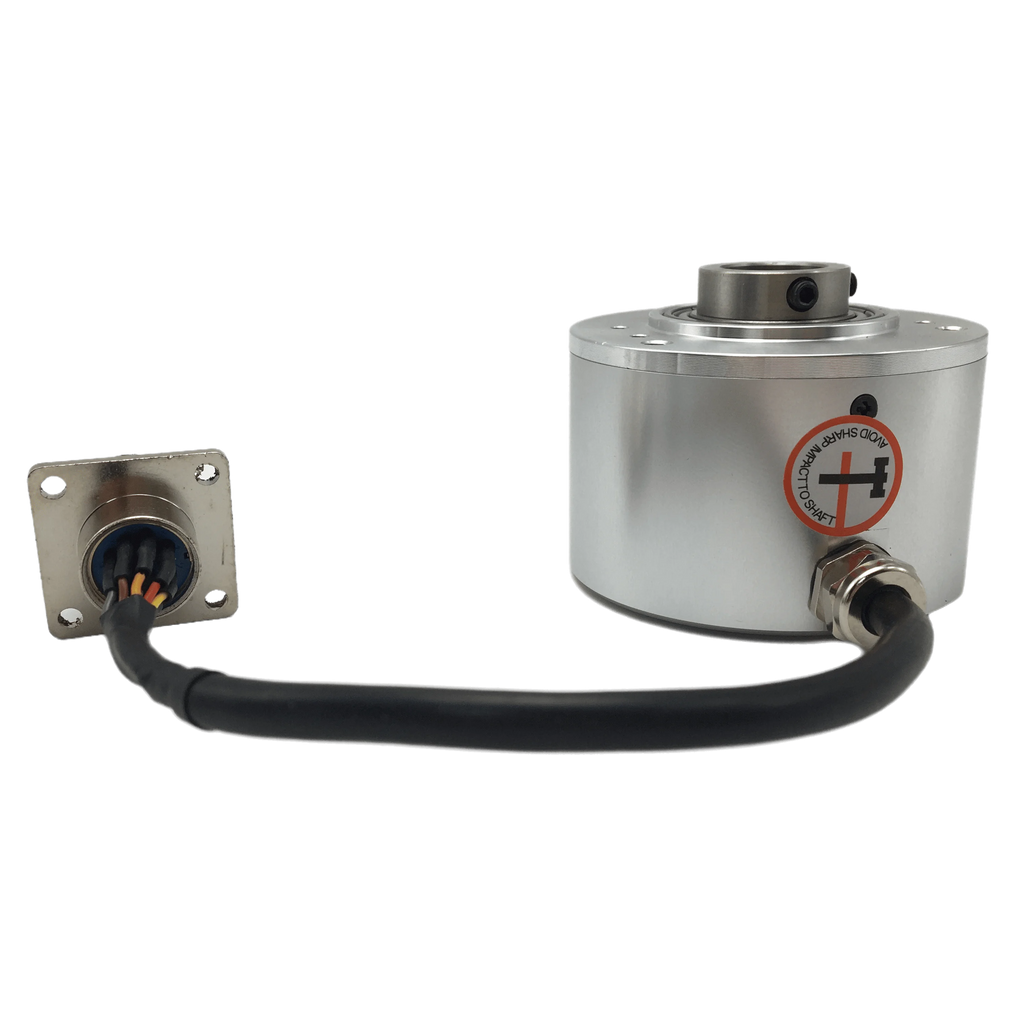

Hot Sales Encoder IHA6015-501C-1024ABZ-5-30K Hollow Shaft Incremental Rotary Encoder

ELECTRICAL SPEC

output circuit

open collector NPN output

voltage output

push pull output

line driver output

supply voltage

5/26

5/26

5±0.25  5-26

5±0.25  5-26

current consumption

≤80mA

≤80mA

≤80mA

≤150mA

load current

40mA

40mA

40mA

60mA

single high level

min Vcc*70%

min Vcc-2.5V

min Vcc-1.5V

min 3.4V

single low level

Max 0.4V

Max 0.4V

Max0.8V

Max 0.4V

rising time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

declining time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

response frequency

300kHz

300kHz

300kHz

300kHz

MECHANICAL SPEC

number of pulses

starting torque without sealing

Max load permitted on shaft

shock resistance

vibration proof

1024

≤0.05Nm

radial 50N,Axial 20N

50G/11ms

10G 10-2000Hz

rotational inertia

Working temperature

Storage temperature

Protection class

Weight

4x10-8kgm2

 under30~85°C

 - 35~95°C

IP51

100g
