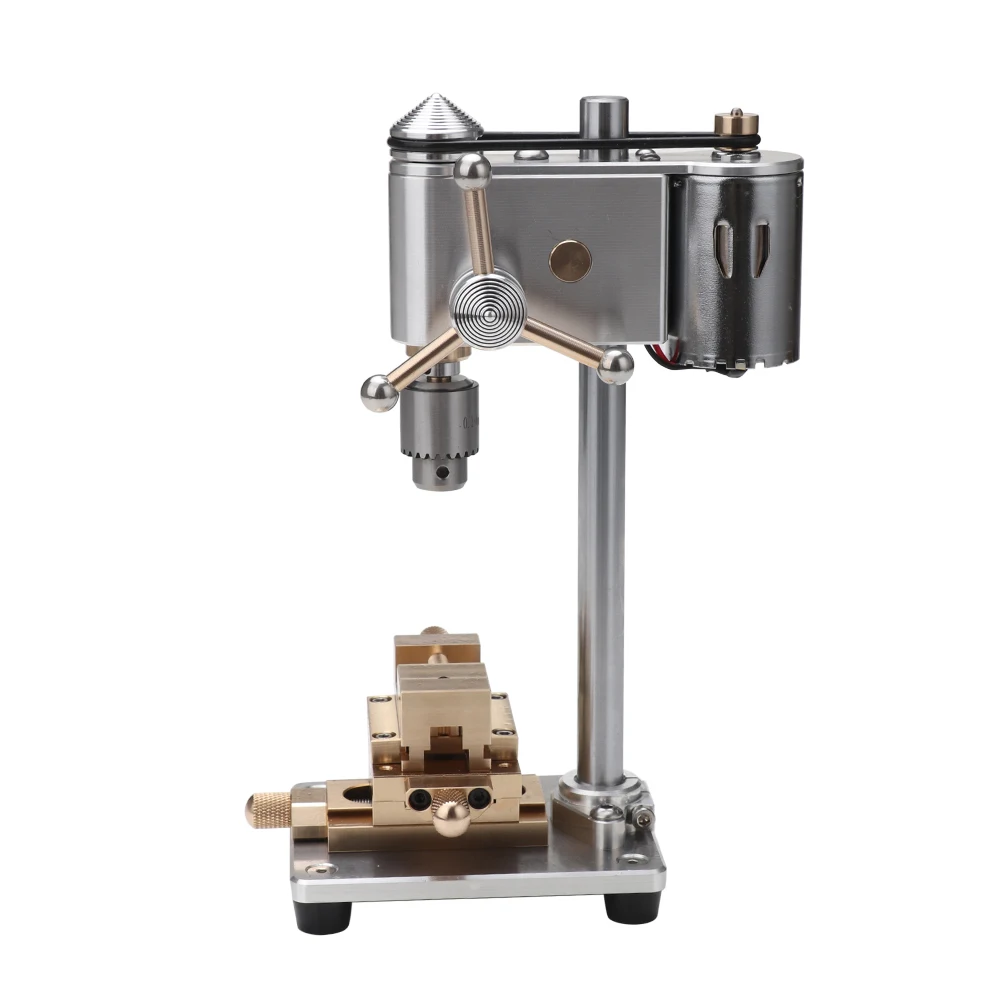

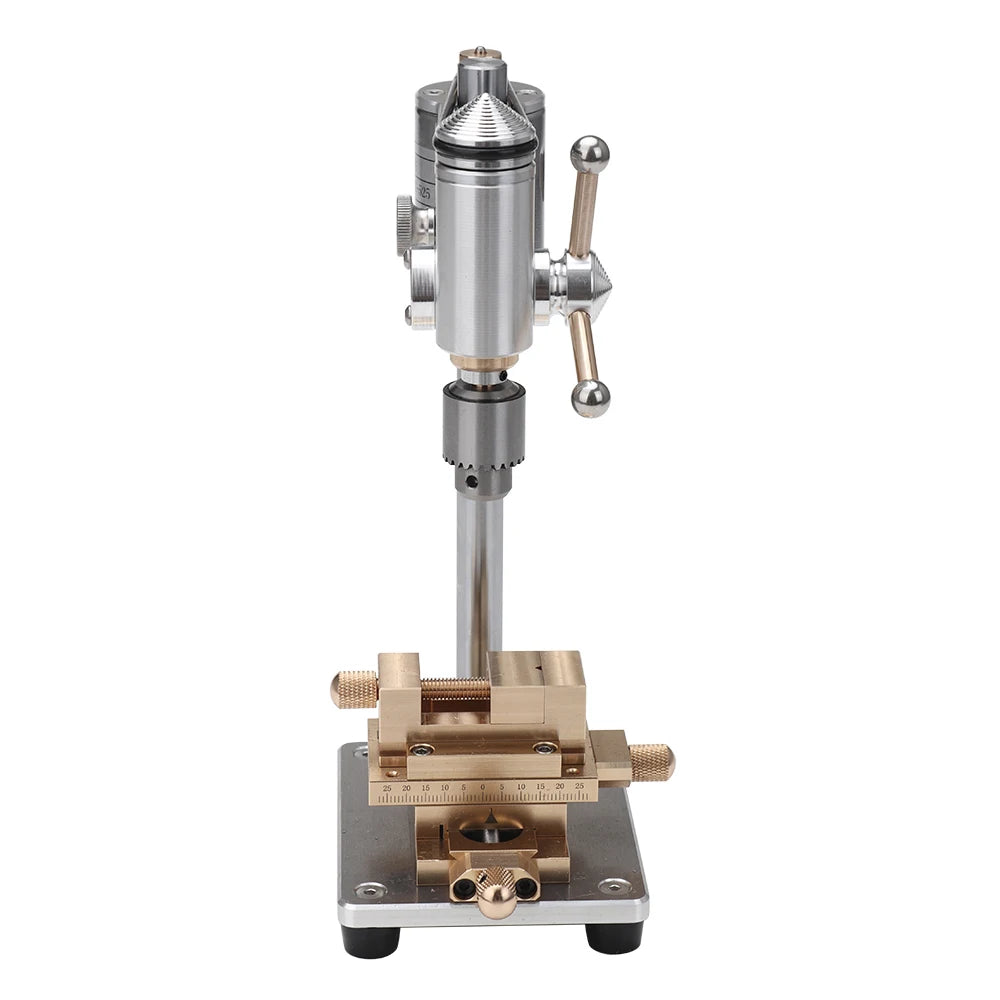

Mini Table Drill Micro Bench Drill 0.3-4mm Precision Watch Repair Tool 3.175mm Chuck Industrial-Grade Aluminum Alloy Body
Mini Table Drill Micro Bench Drill 0.3-4mm Precision Watch Repair Tool 3.175mm Chuck Industrial-Grade Aluminum Alloy Body
Product Uses
This mini table drill is designed for precision drilling in small-scale applications, including:
Ideal for users who need a compact, accurate bench drill with collection-grade craftsmanship.
Watch repair & clockmaking
PCB prototyping & circuit board drilling
Model making (plastic, wood, soft metal)
Jewelry crafting & engraving
Hobbyist & DIY precision work
Laboratory and electronic component processing
Ideal for users who need a compact, accurate bench drill with collection-grade craftsmanship.
Product Features
✅ Three Chuck Versions Available (A / B / C)
Version |
Chuck Type |
Clamping Range |
Accuracy |
Best For |
A |
Universal drill chuck |
0.3 – 4 mm |
~0.005 mm |
General use, wide bit selection |
B |
Fixed 3.175 mm chuck |
0.1 – 3.175 mm (shank 3.175 mm) |
≤0.002 mm |
High precision, stable drilling |
C |
Three‑jaw chuck |
0.3 – 4 mm |
– |
Upgrade the 545 motor |
Working Principle

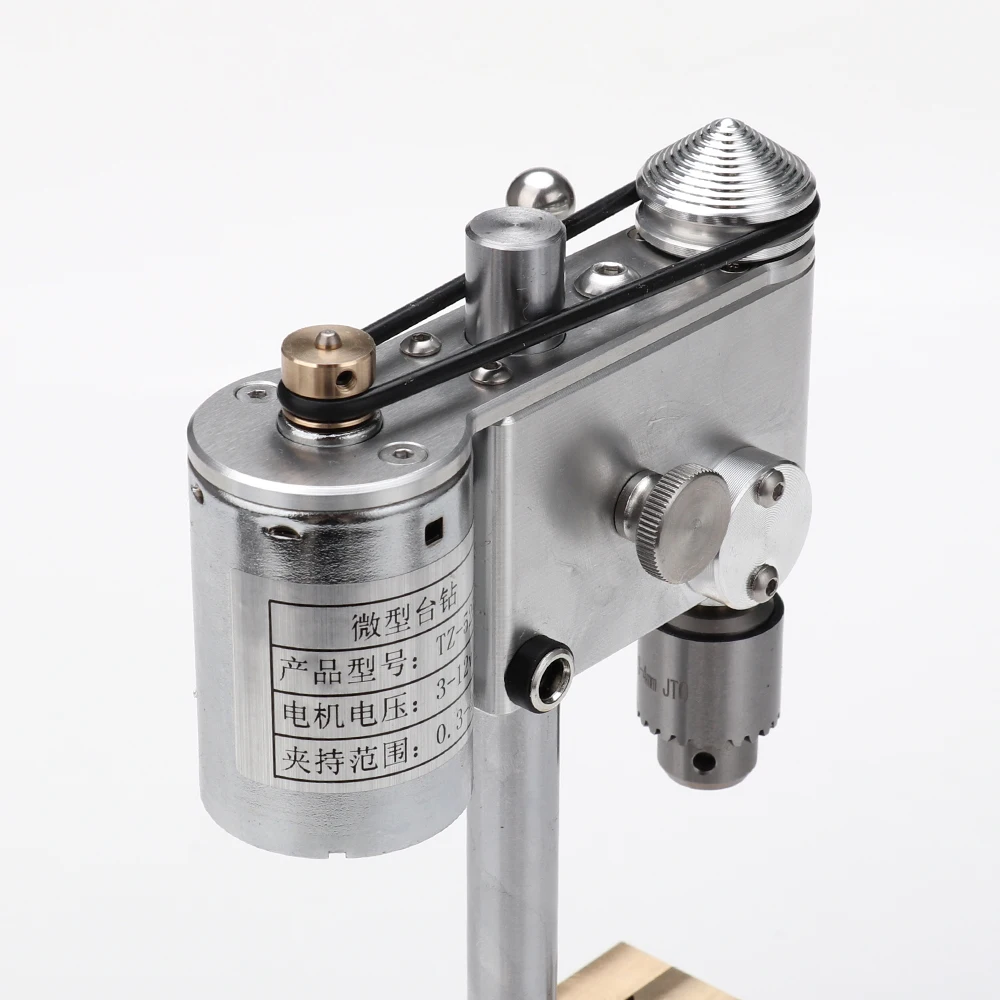

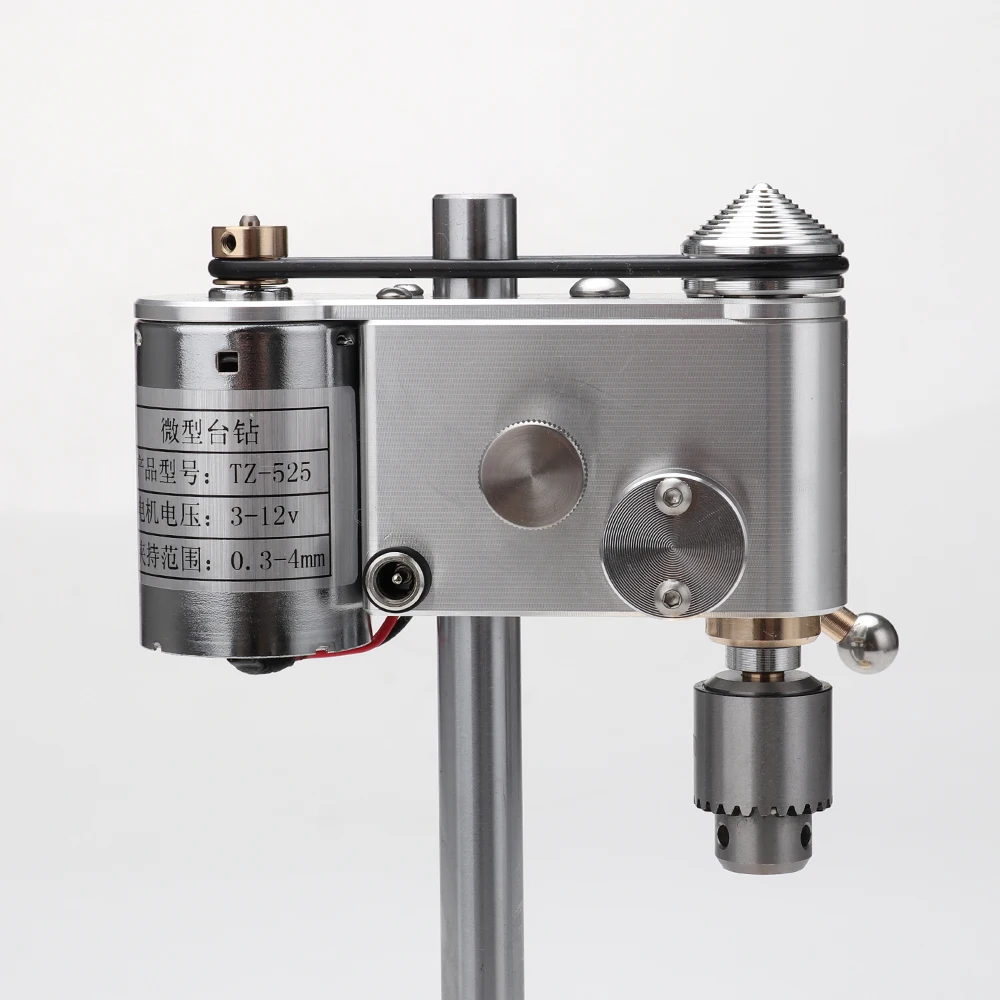

A DC motor (Version C uses 545 motor) drives the spindle through a precision brass sleeve.
The chuck holds the drill bit firmly with low runout (≤0.002 mm for Version B).
By adjusting the input voltage (3–12V), the motor speed changes continuously.

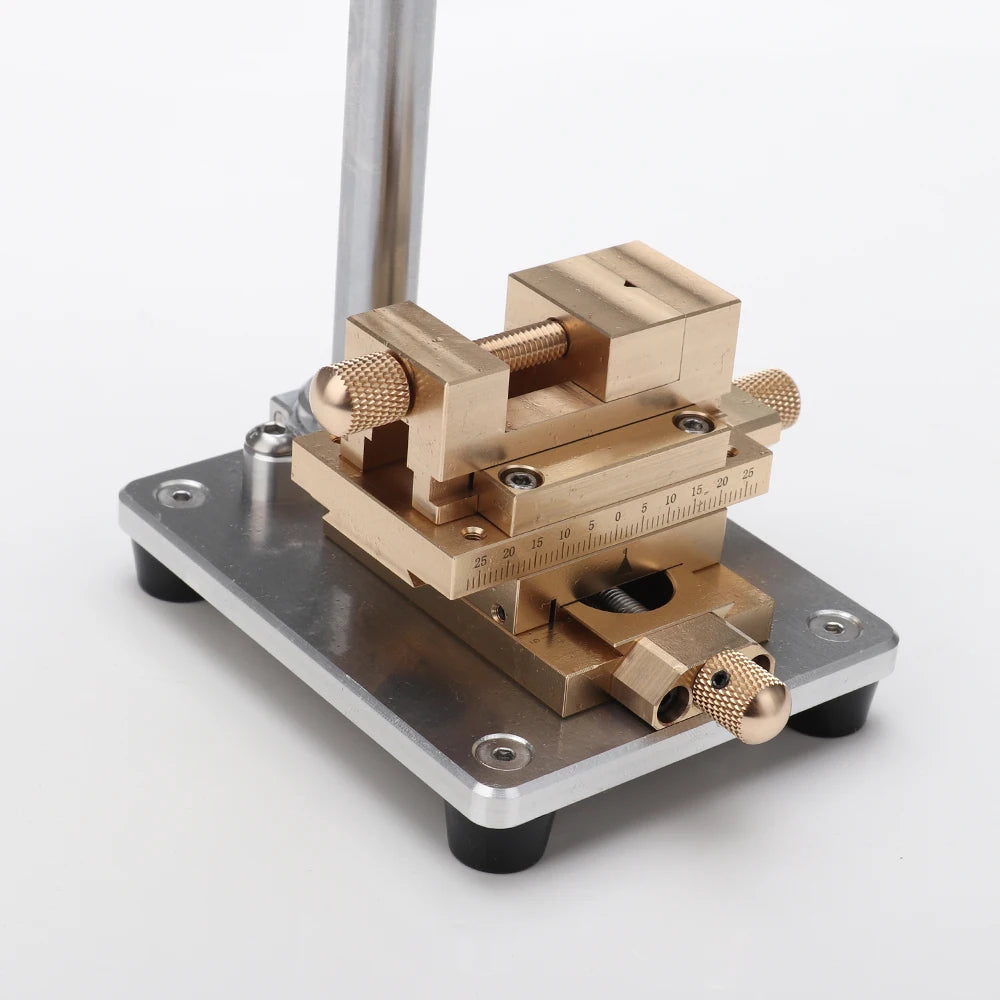

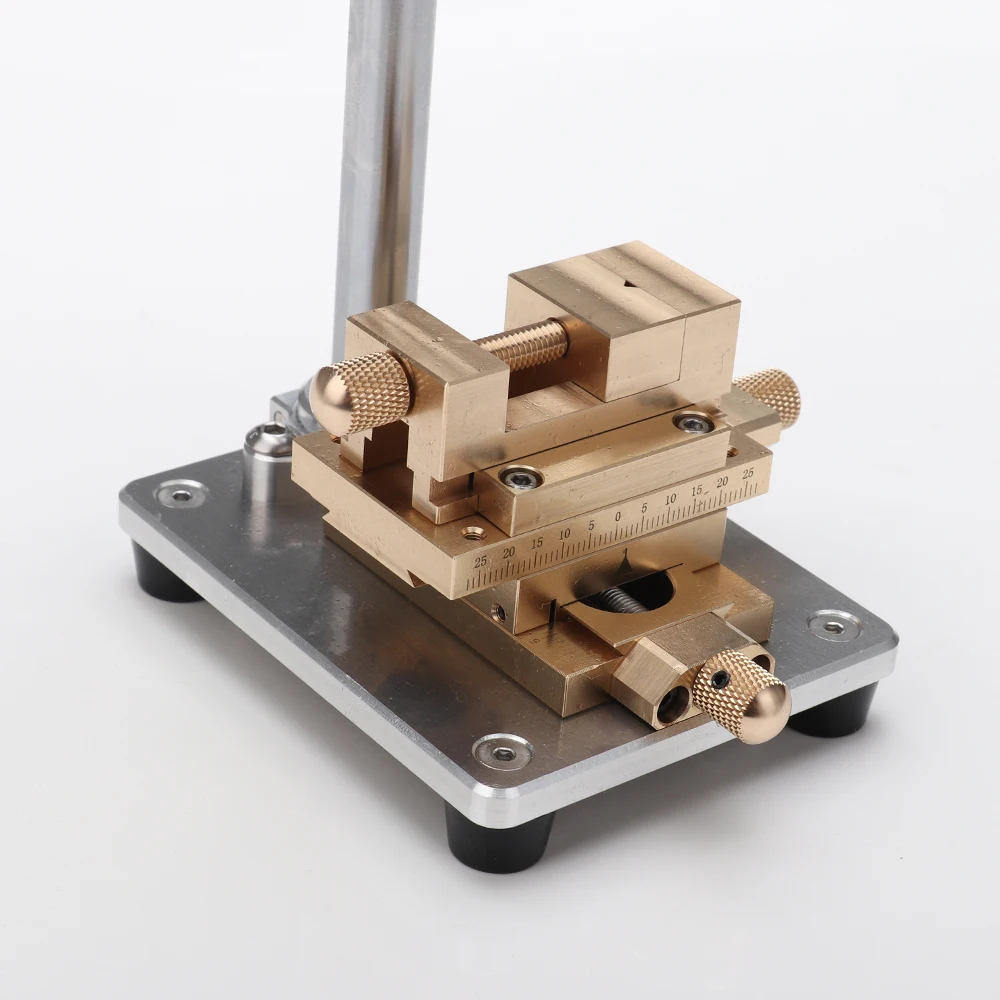

The workpiece is placed on the fixed worktable; the spindle moves vertically along the 13 mm stroke to perform drilling.
This structure mimics industrial bench drills but at a micro scale, ensuring stability and repeatability.

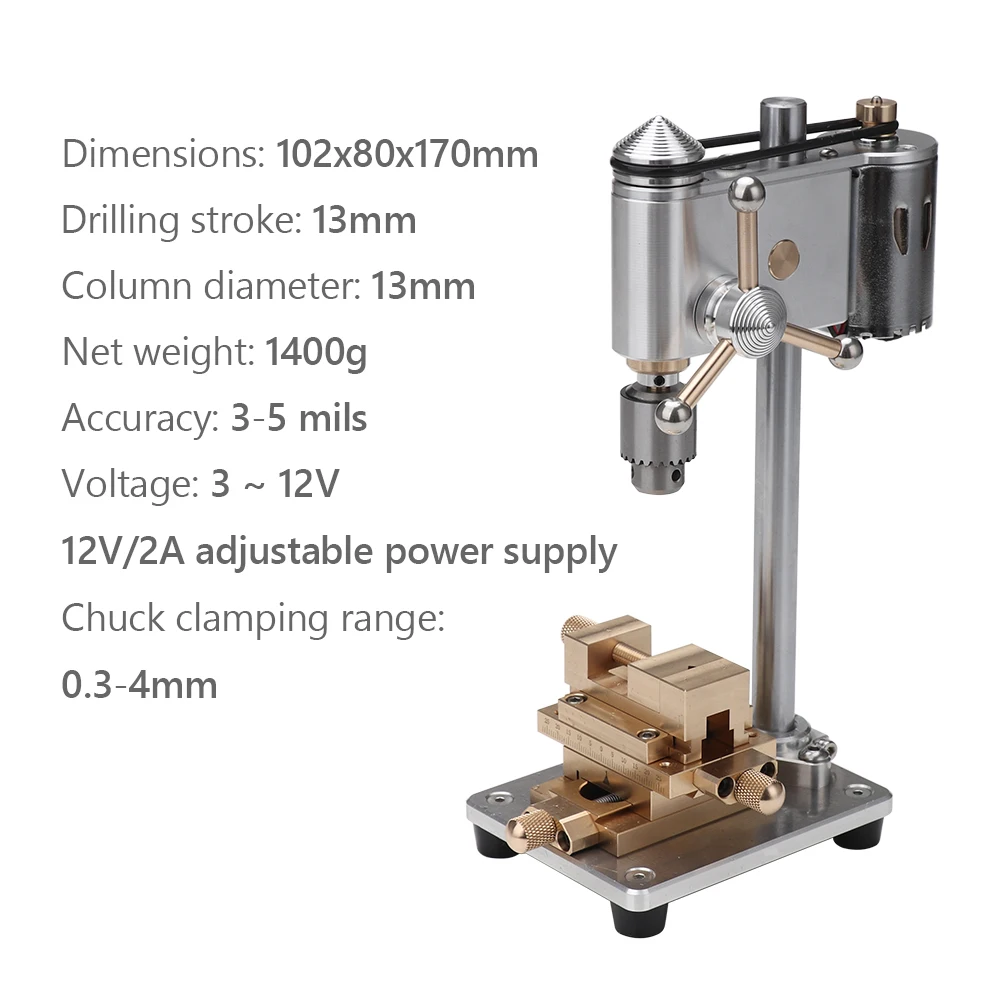

Technical Specifications
Parameter |
Value |
Product Name |
Mini Table Drill / Micro Bench Drill |
Chuck Type (this listing) |
Fixed 3.175 mm (Version B) |
Clamping Range |
0.1 – 3.175 mm (shank 3.175 mm) |
Alternative Chuck Options |
Version A (0.3–4 mm), Version C (3.3–4 mm) |
Accuracy (Version B) |
≤0.002 mm (2 thousandths) |
Motor |
DC motor (Version C: 545 motor) |
Voltage Range |
3 – 12 V DC |
Included Power Supply |
12V / 2A adjustable (speed control) |
Max Drilling Diameter (Soft Metal) |
1 – 3 mm |
Product Size |
100 × 80 × 180 mm |
Column Diameter |
13 mm |
Drilling Stroke |
13 mm |
Chuck to Worktable Height |
70 mm |
Net Weight |
800 g |
Main Material |
Aluminum alloy + brass spindle |
Manufacturing |
CNC machined, industrial-grade |
Table drill, mini table drill, micro table drill, precision watch table drill Industrial-grade bench drill structure
Version A is a universal drill chuck with an accuracy of around 5 thousandths, capable of holding a wide range of sizes from 0.3 to 4mm. Version B is a fixed chuck with a 3.175-inch handle, suitable for drill bits with a 3.175-inch handle, with a high accuracy of within 2 thousandths. It is stable for drilling and is suitable for precision drilling purposes.
The fixed drill bit has a handle size ranging from 0.1 to 3.175, all being 3.175mm in length. Version C is a three-jaw chuck with a 3.3-4mm range, featuring a 545 motor. Dimensions are 100x80x180mm, with a column of 13mm, a drilling travel of 13mm, and the chuck to the worktable height being 70mm, with a net weight of 800 grams.

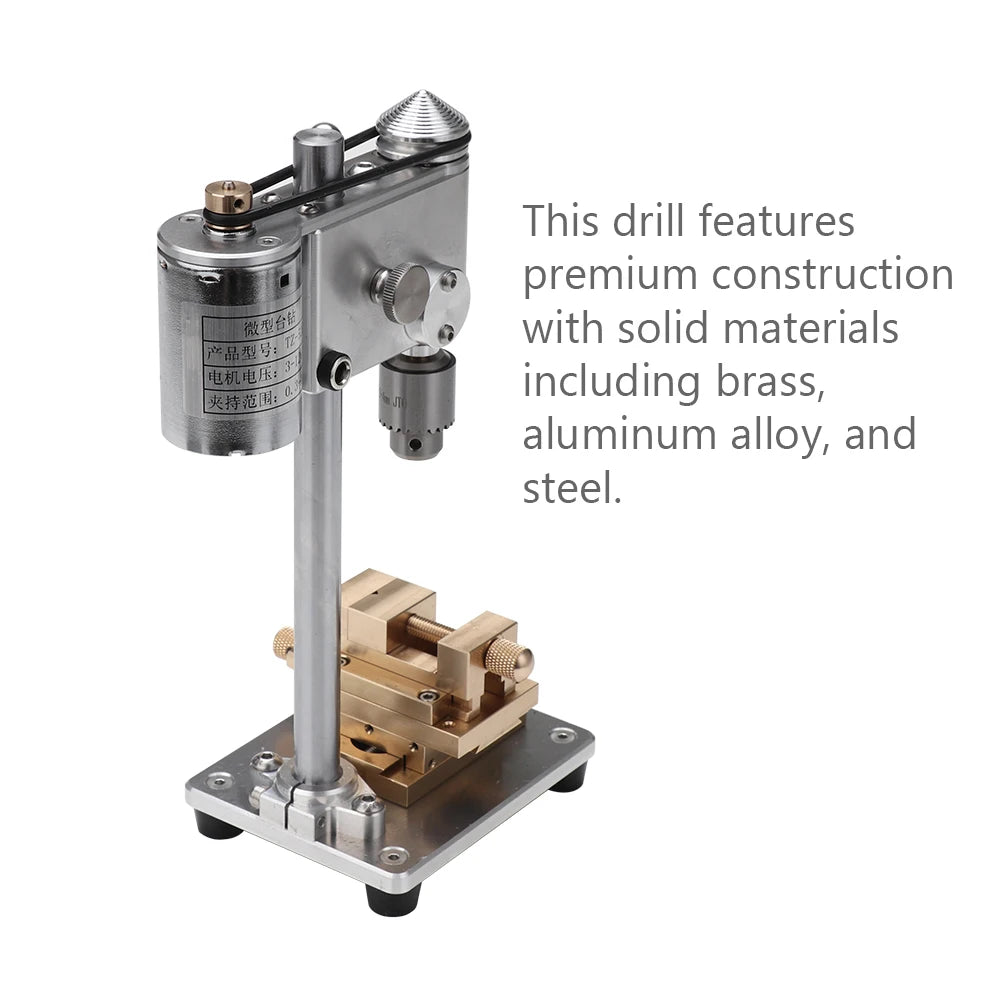

The drill stand is made of solid materials, with the main body being aluminum alloy. The spindle sleeve and the spindle use brass, and the workmanship is extremely fine. The parts are all CNC processed, and the part structure is made according to industrial-grade standards. The cost is not spared to create the most exquisite mechanical display item and craft collection for enthusiasts and collectors! The collection value is greater than the practical use.

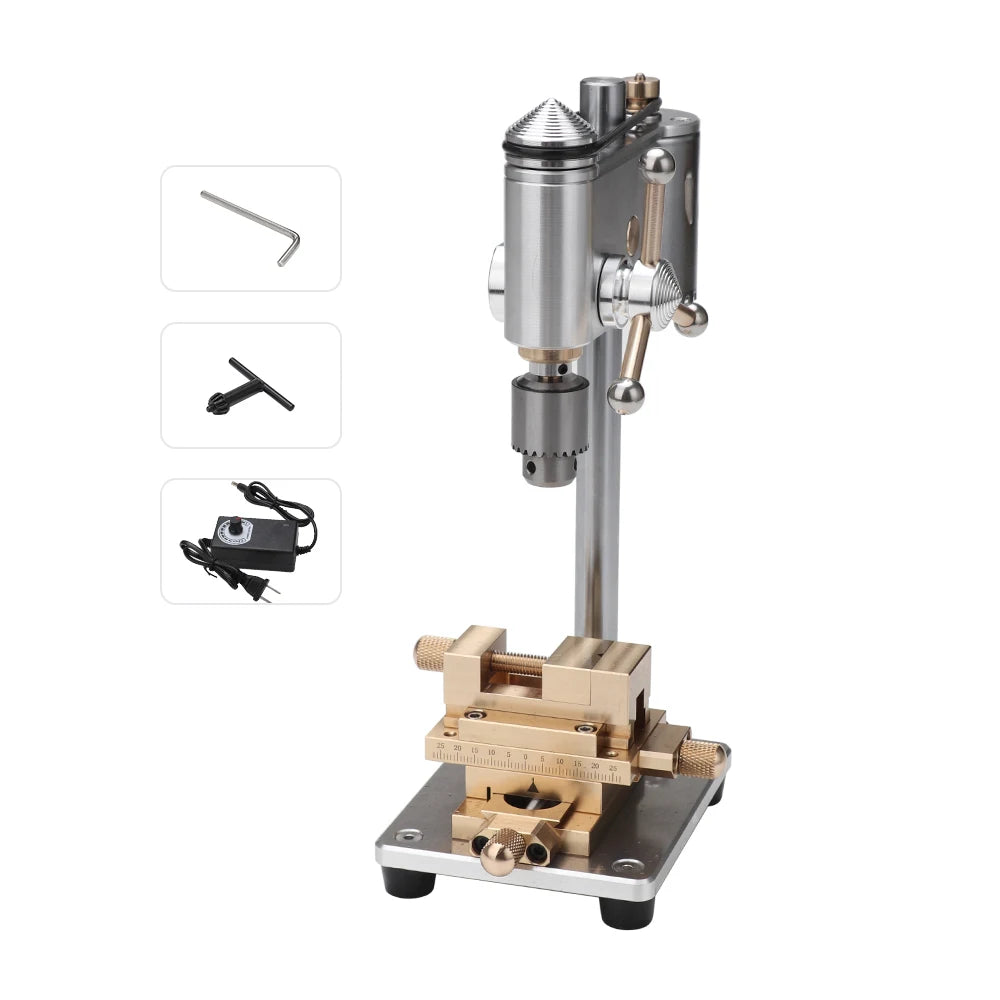

The voltage ranges from 3 to 12V. Soft metals can drill holes up to 1 to 3mm. A 12V 2A adjustable power supply is provided, with adjustable speed. Micro Bench Drill 0.3-4mm Mini Drilling Machine Precision Watch Repair Tool Bench Drill With Speed Adjustable Power Adapter
