Color
Measuring Range

Notes:

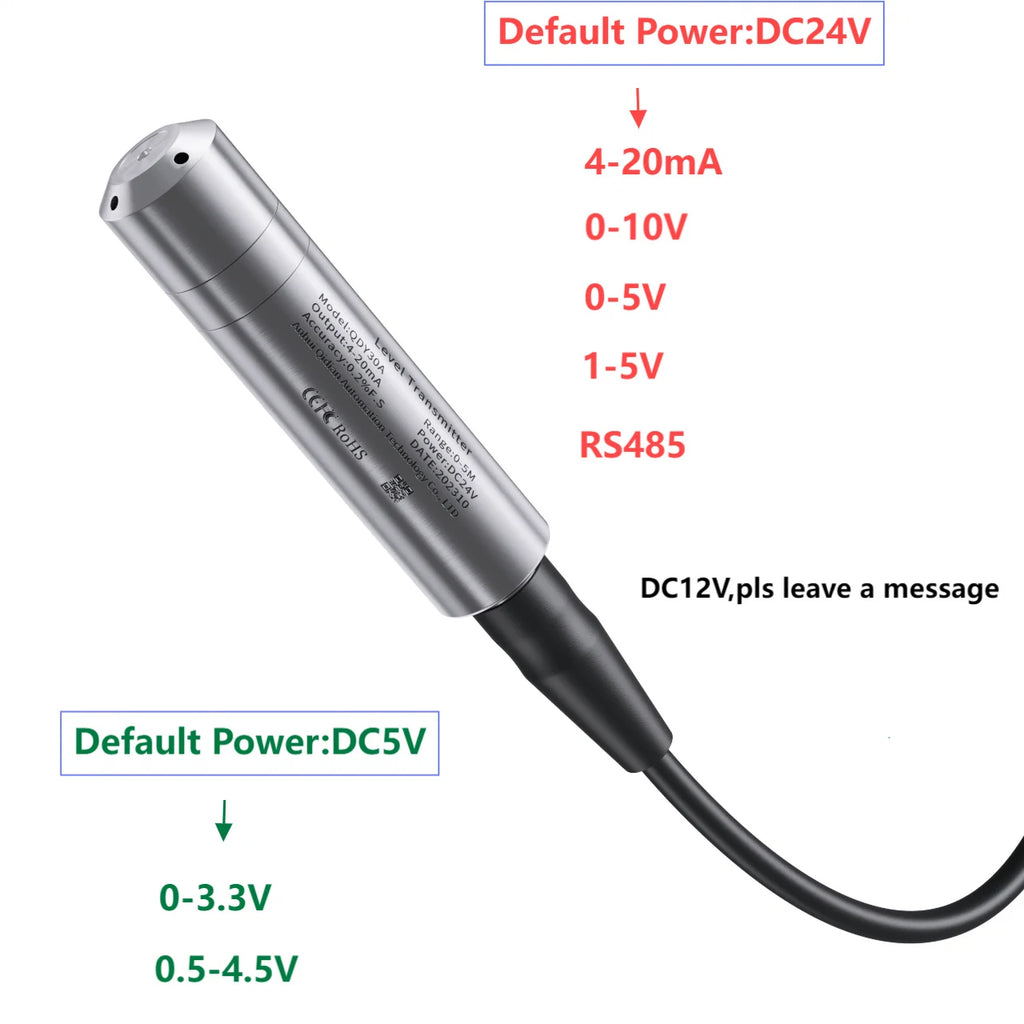

Power supply: Default DC24V (DC12-30V can be used,0.5-4.5V /0-3.3V output ,power supply is DC5V).

4-20mA is 2 wires.
RS485 is 4 wires.
0-10V,0-5V,1-5V,0-3.3V,0.5-4.5V is 3 wires.


Range:0-0.5m-500m range can be customized

316 stainless steel probe can be customized

Default probe diameter: 28mm (customizable probe diameter: 19mm)


Our packages will include a QR code for the product manual. If you cannot obtain the manual/RS485 protocol by the code, please contact me and I will send the manual to you directly.
Description

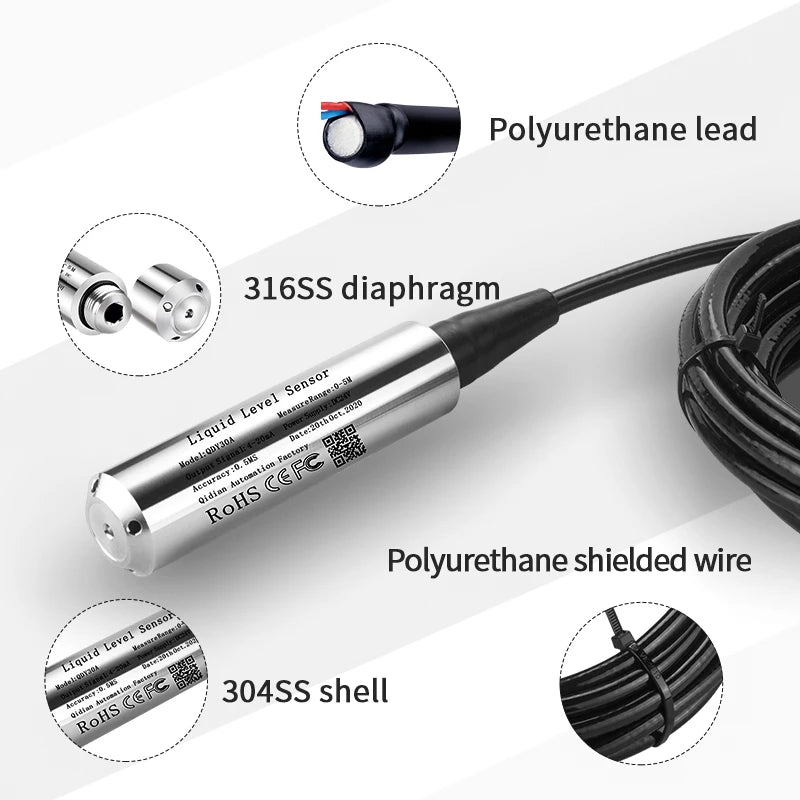

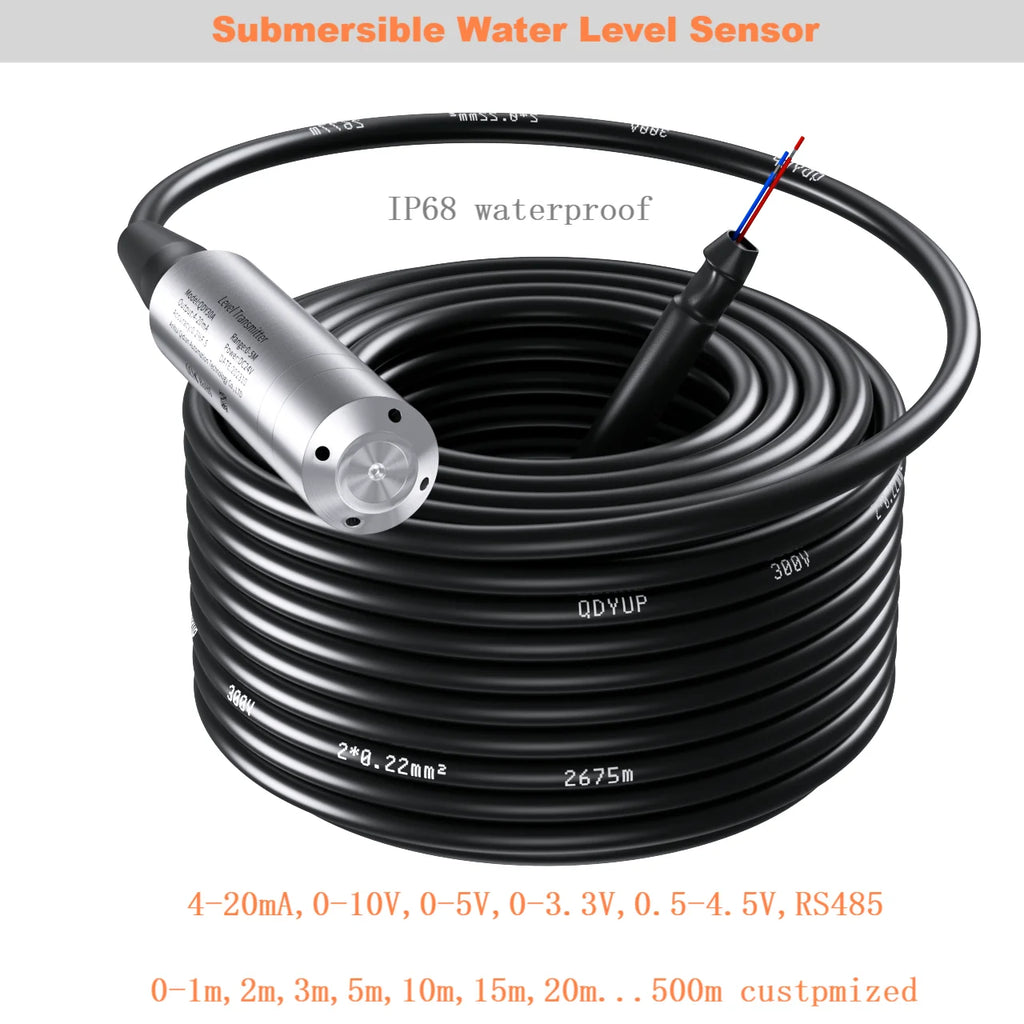

<1>.QDY30A submersible Water Level Sensor, its 304 stainless steel and hermetically sealed housing make it suitable for most industrial liquids and oils.

<2>. The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.

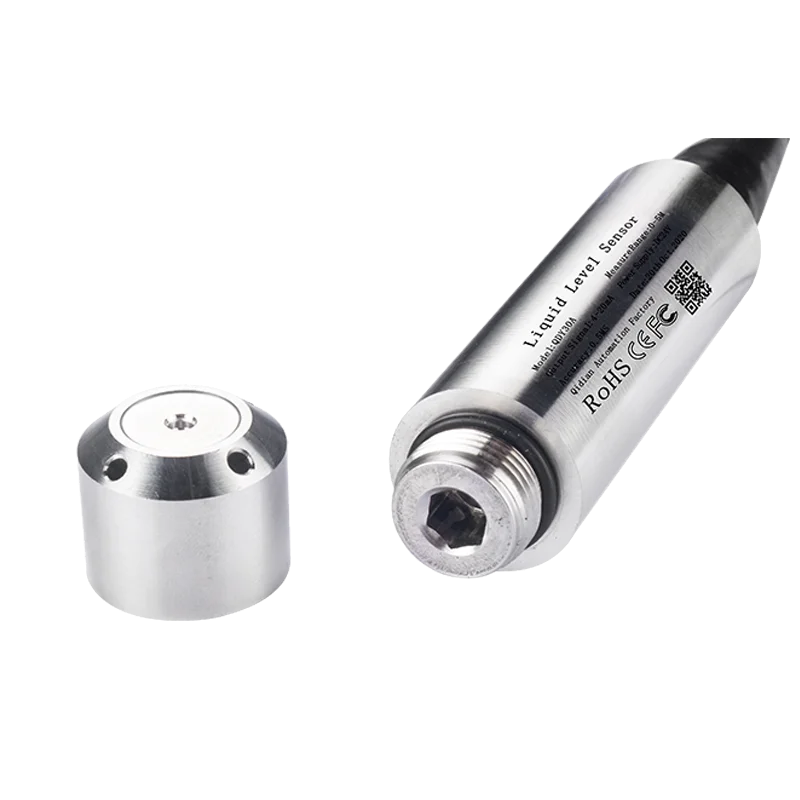

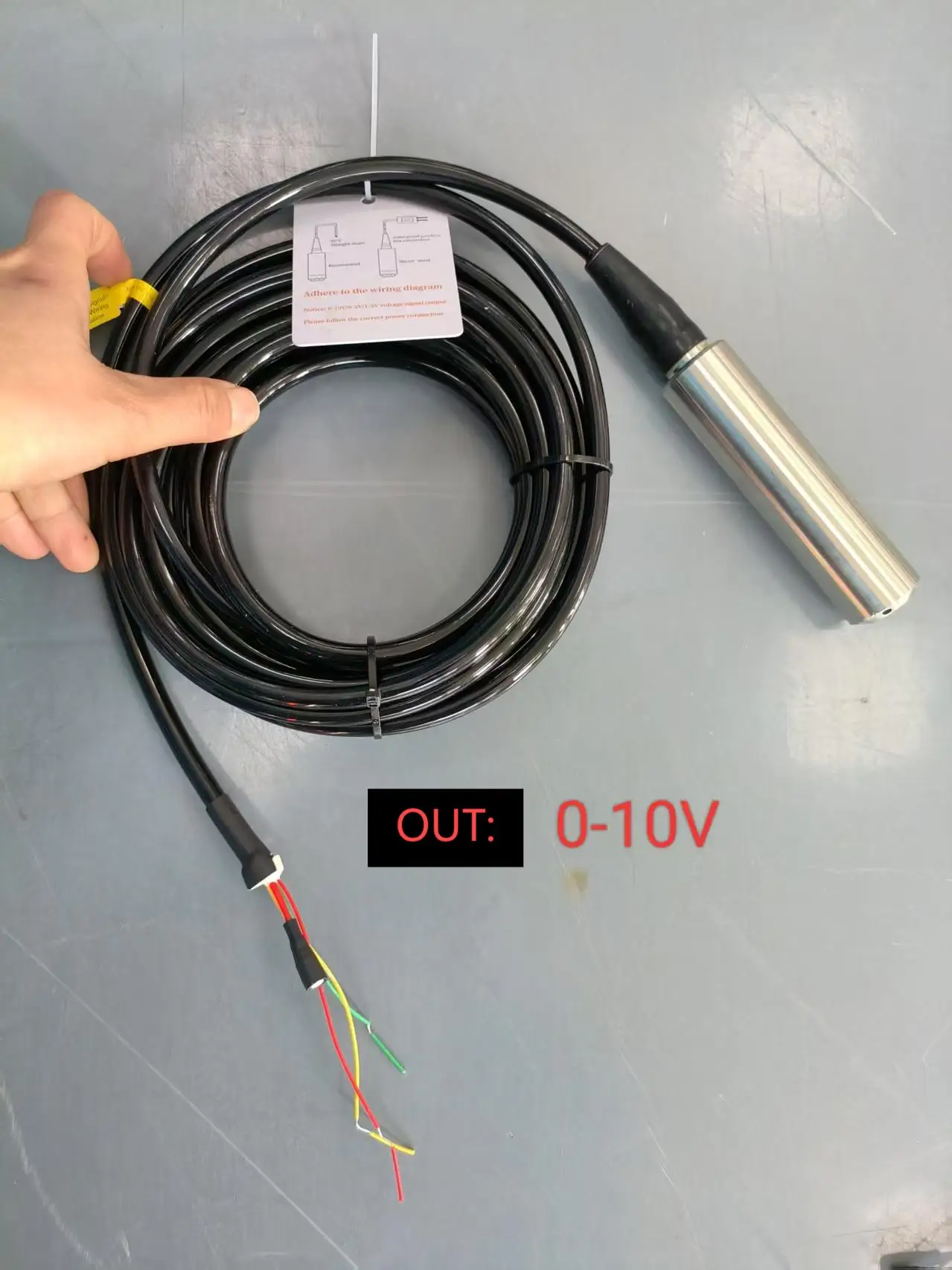

Physical picture

The voltage output does not have reverse protection, please be careful not to connect the wrong wire. Connecting the wrong wire will directly burn out the product, and the manufacturer cannot compensate.

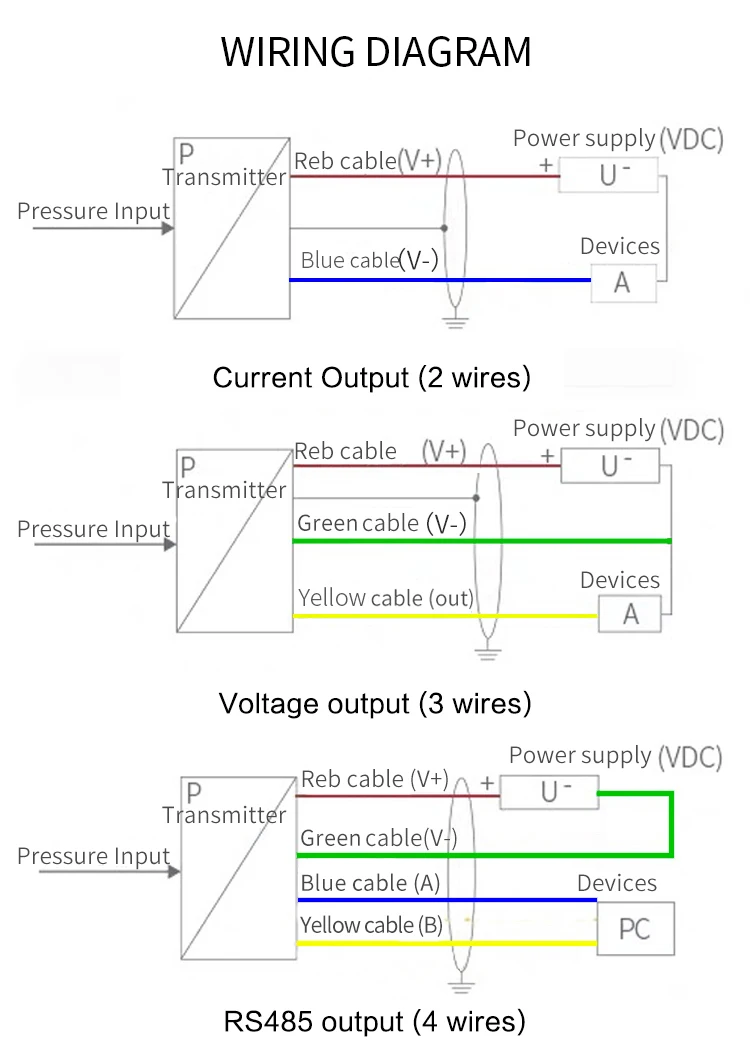

The detailed information below includes a wiring diagram. If you are unsure, please contact me. Thank you.
