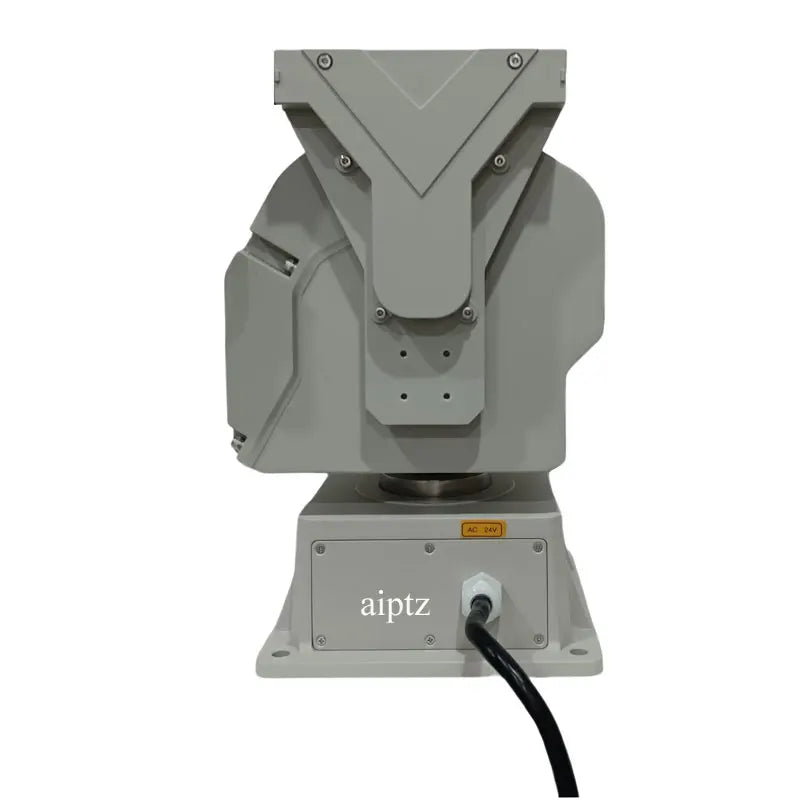

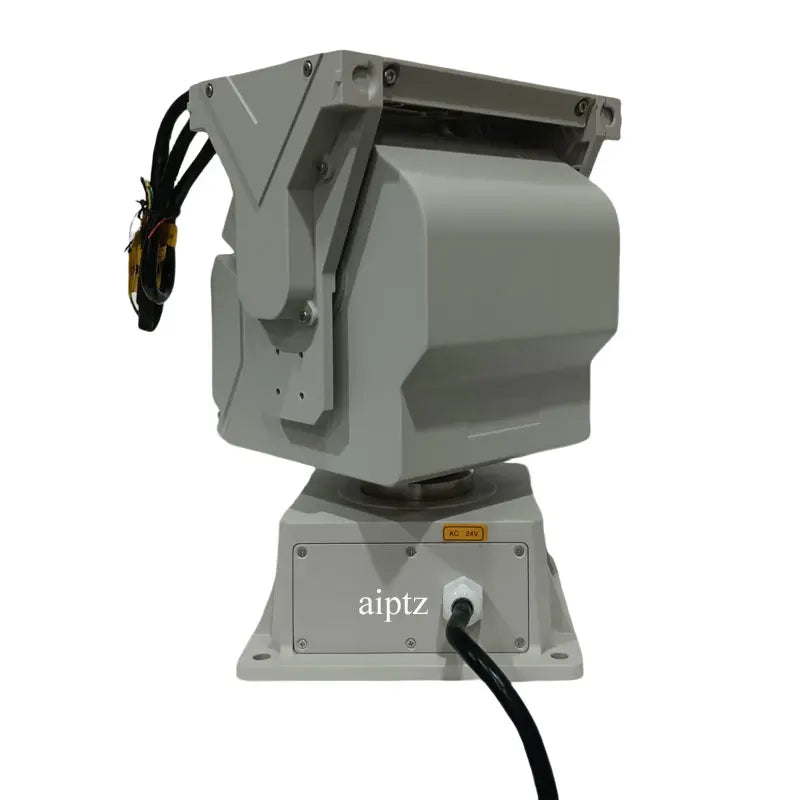

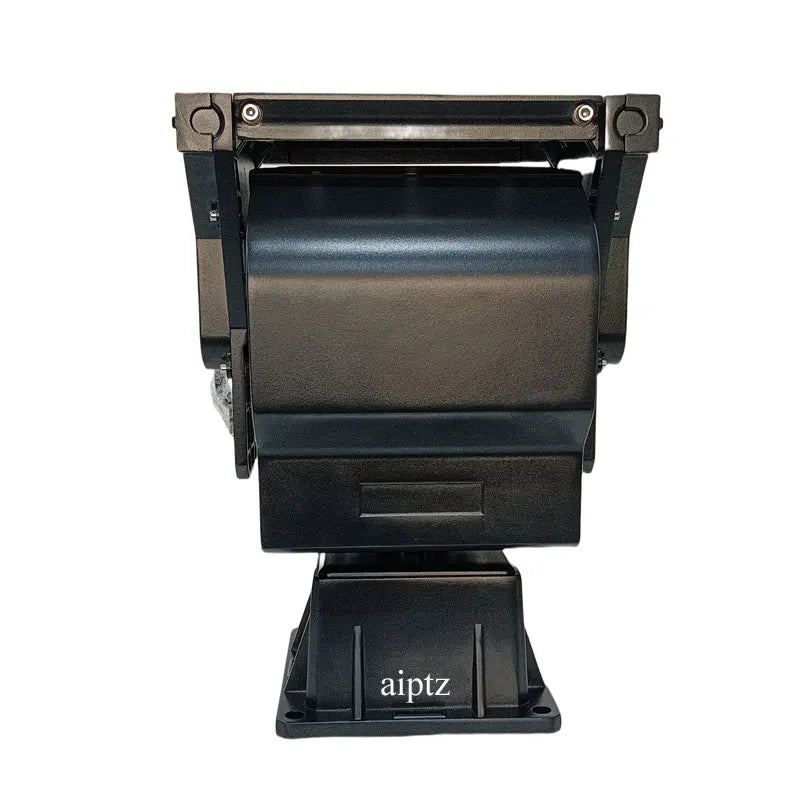

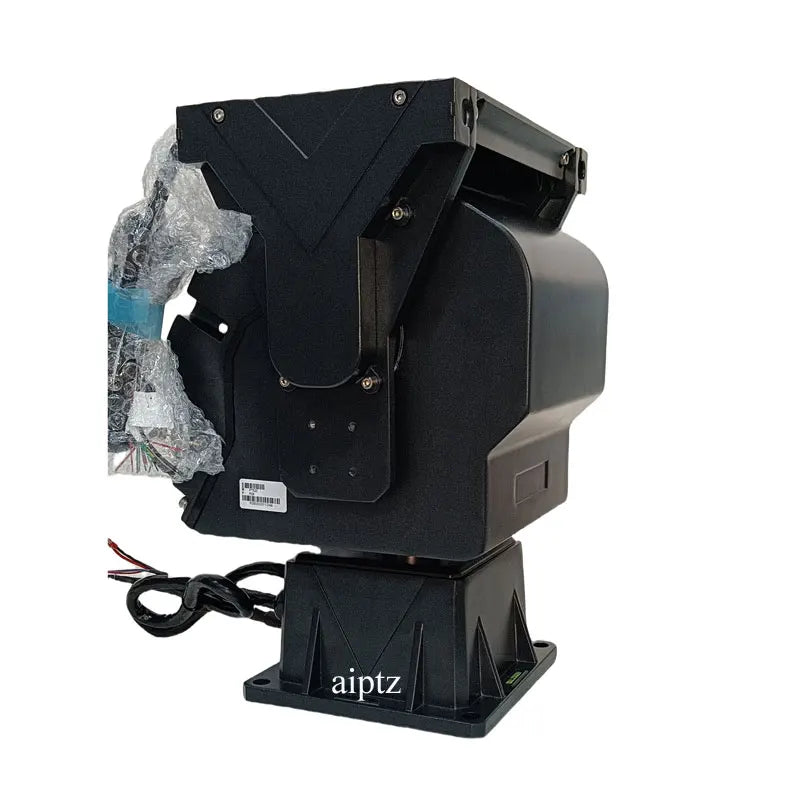

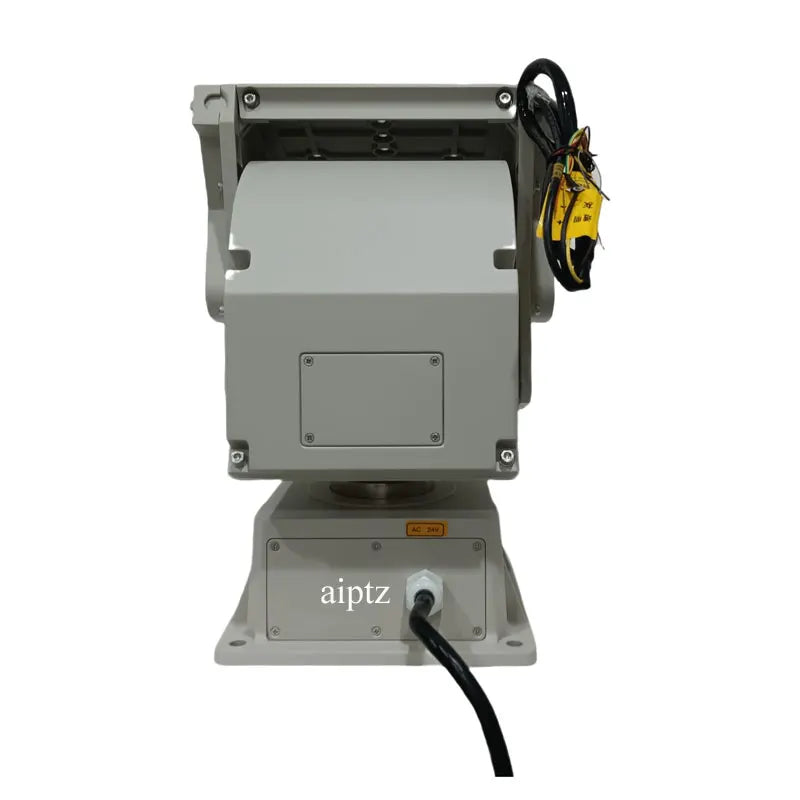

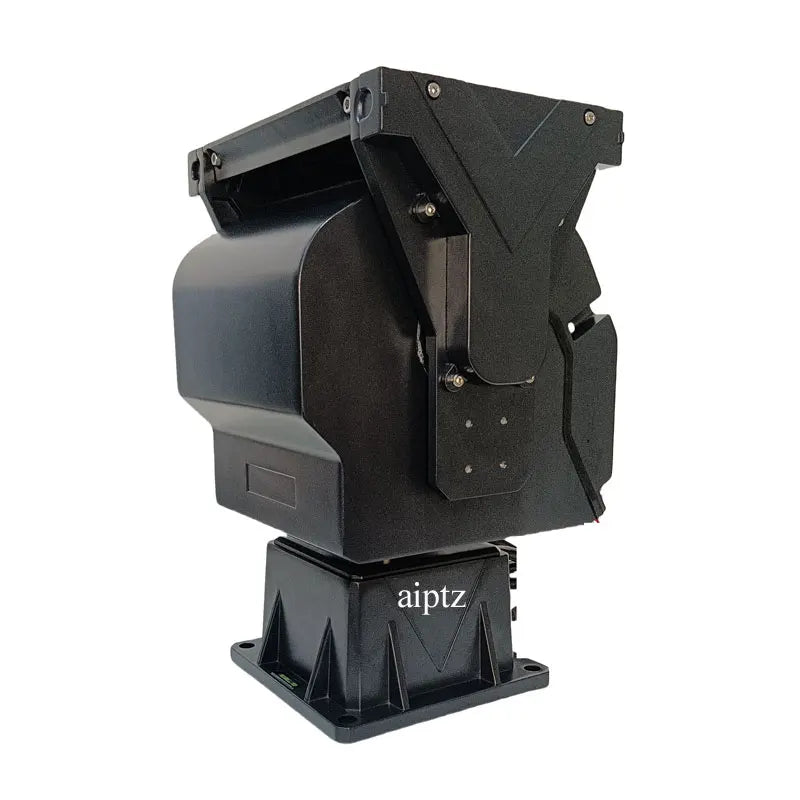

15~20Kg load Pan&Tilt Motorised Heads,worm gear transmission structure-self-locking when power off,supports Pelco_D protocol
15~20Kg load Pan&Tilt Motorised Heads,worm gear transmission structure-self-locking when power off,supports Pelco_D protocol
█ Specifications
Model |
JSA-EFPTZDU52 Series |
Max. Load |
15k~20kg |
Bearing mode |
Top load/(side load compatible) |
Driving mode |
Worm gear drive, timing belt drive hybrid mode |
Pan Angle |
0°～360° |
Tilt Angle |
-75°~40°or -45°~40°Optional |
Pan Speed |
0.1°～60°/S or 0.01°～60°/S |
Tilt Speed |
0.1°～30°/S or 0.01°～30°/S |
Preset Accuracy |
±0.1°，[Customizable±0.01°] |
Preset |
≤200 |
Auto cruise |
Support |
Interfaced |
RS485, optional RS422 |
Protocol |
Pelco_D |
Baud Rate |
9600 |
Address |
1 |
Bottom cable |
AC24V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand |
Top cable |
AC24V*1、DC12V*1、RS485*1、RJ45*1、GND*1；Optional other lines can be customized on demand |
Angle return |
Optional |
Input voltage range |
AC24V±20% 50/60HZ；≤90W |
Operating temperature |
-35℃~+65℃ |
Working humidity |
<90%RH |
Lightning protection |
Input voltage range supply ≤4000V, communication and video signal ≤2000V |
Prevention grade |
Standard configurationIP66; Optional Anti-salt spray treatment |
Weight |
≈13kg |
Size |
227mm×249mm×349mm |
█ Size
█ Order model
Model |
Load /Kg |
Angle range |
Speed range |
Preset Accuracy |
Angle feedback |
Top outlet |
Bottom cable entry |
||
Pan |
Tilt |
Pan |
Tilt |
||||||
JSA-EFPTZDU5215 |
15 |
0°~360° |
-75°~40° |
0.1°～60°/S |
0.1°～30°/S |
±0.1° |
Optional |
RS485*1 |
RS485*1 |
JSA-EFPTZDU5220 |
20 |
-45°~40° |
|||||||
JSA-EFPTZDU52H20 |
20 |
0°~360° |
-45°~40° |
0.01°～60°/S |
0.01°～30°/S |
±0.01° |
|||
Project customization |
Based on this standard model, we can customize the Pan or Tilt angle range, bottom input cable, top output cable, software, etc. according to the customer's individual needs. For customization, please contact: www.aiptz.com、aiptz@jsa-cctv.com , WeChat：A380487881 |
||||||||

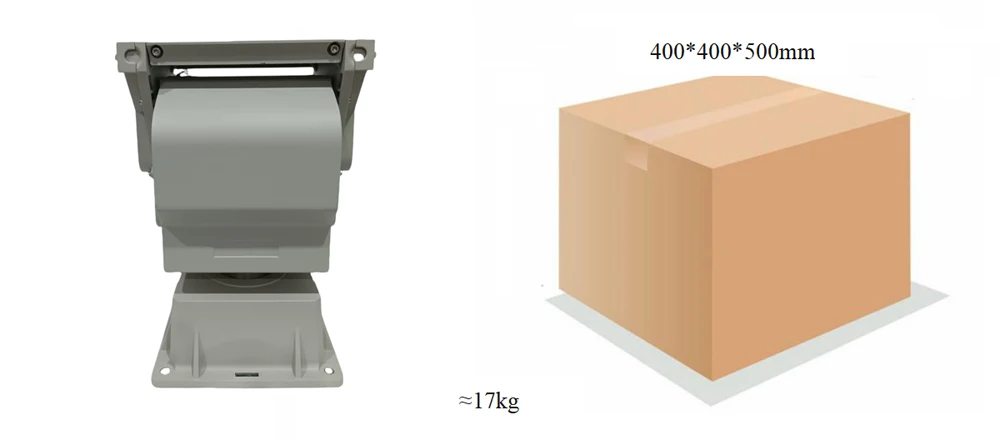

█ Package weight
